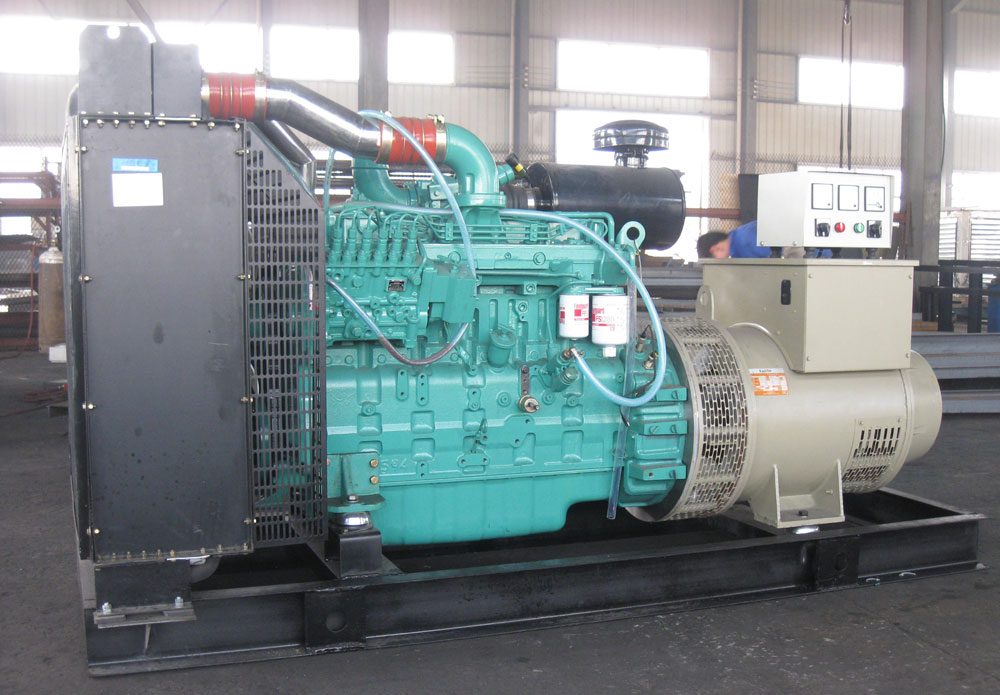

160kw 200kva dg set cummins powergen
160kw dg cummins, 200kva cummins dg set, cummins powergen from China Vendor, run on diesel, suitable for primary electricity source, top quality & best price, suitable for CE certificate required countries.
General Details
Technical specifications of 160kw 200kva dg set cummins powergen :
| Generator set | Model No. | 160GF-C |
| Rated power | 160KW/200KVA | |
| Standby power | 176KW/220KVA | |
| Output voltage | 230/400V | |
| Rated speed (r/min.) | 1500 | |
| Noise level | 70-75 dB ( silent type ) / 90-110 db ( open type) | |
| Power factor | COSΦ=0.8（lagging） | |
| Phase/wires | 3 phase 4 wires | |
| Start mode | Electric | |
| Fuel consumption | 205g/kw.h @ 100% loaded | |
| Rated currency(amps) | 288 | |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current. | |
| Dimension | 2700x950x1450 mm | |
| Gross weight | 1680 kgs | |
| Engine | Brand | Cummins |
| Model | 6CTAA8.3-G2 | |
| Original: | Manufactured by Dongfeng Cummins Engine Corporation | |
| Cylinders | 6 | |
| Fuel | 0# light diesel | |
| Cooling | Low Temperature After cooling | |
| Overload | 110% | |
| Engine Power | 183kw/228.75kva | |
| Start mode | DC24V electric start | |
| Cylinders Layout | In Line | |
| Displacement | 8.3 L | |
| Speed-Governing | Electric | |
| Steady Speed Droop | ≤1% | |
| Alternator | Brand | Stamford |
| Model | UCI274H | |
| Protection | IP23 | |
| Frequency fluctuation | ≤±0.5 % | |
| Voltage fluctuation | ≤±0.5 % | |
| Power | 160kw / 200kva | |
| Original | Manufactured by Cummins Generator Technologies China | |
| Rated voltage | 230/400 V | |
| Frequency regulation | ≤±0.5 %（stable） | |
| Voltage control | AVR |
