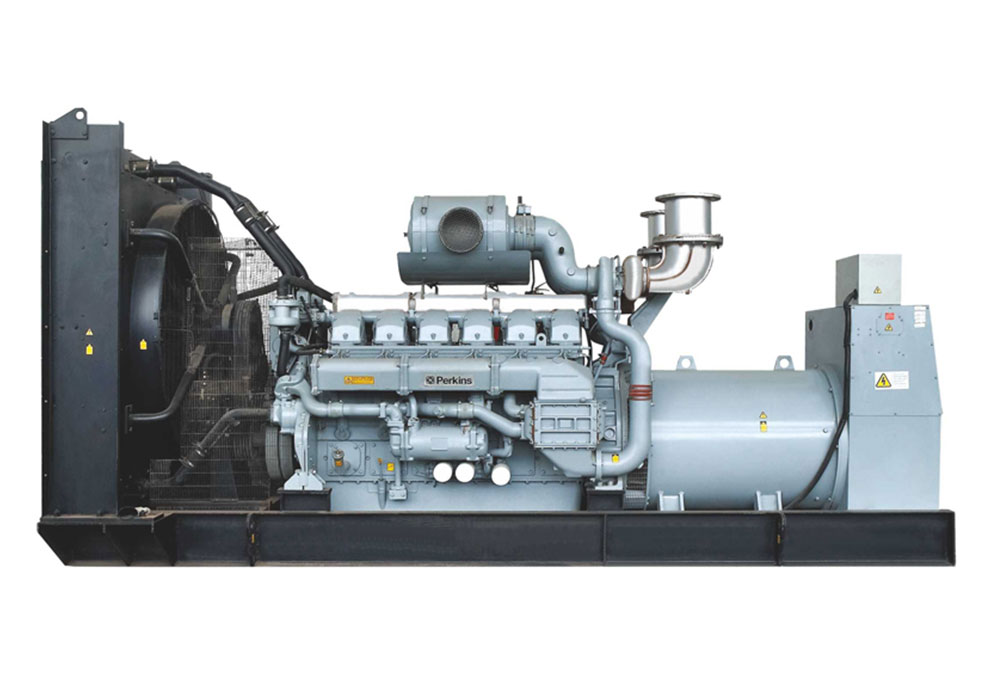

16 Cylinders 1800kw Perkins open type diesel power genset EPA approved

16 Cylinders 1800kw Perkins open type diesel power genset EPA approved 50HZ 400V output, high voltage 6300V 10500V available, soundproof container optional for outdoor mobile usage, powered by original UK Perkins 4016-61TRG3 diesel engine and Stamford PI734G alternator, standard equipped with Deepsea 7320 control panel , other brand and function control panel can be customized too. 20 days fast delivery !

SKU: 1800GF-P Category:
General Details

16 Cylinders 1800kw Perkins diesel power genset overall specifications

Model: 1800GF-P
Prime Power: 1800KW/2250KVA
Standby Power: 2000KW/2500KVA

Diesel Engine Specifications

Engine Model 4016-61TRG3
Engine Manufacturer Perkins UK
Cylinder quantity 16
Cylinder Arrangement Vee 60°
Cycle 4
Aspiration Turbo charged
Bore x Stroke (mm x mm) 160×190
Displacement 45.84 L
Compression Ratio 13:1
Prime power / Speed (KW/RPM) 1975kw/1500
Standby power/ Speed (KW/RPM) 2183kw/1500
Governor type Electronic
Piston Speed 9.5 m/s
Typical genset electrical output 1800 kw
Total Lubrication System Capacity (L) 213
Total Coolant Capacity (L) 316
Fuel Consumption at 100% load (L/hour) 473?L
Starter motor 24V
Alternator 24V
Minimum cranking speed 120 rpm

Alternator Specifications

Alternator model PI734G
Alternator manufacturer STAMFORD
Exciter type Single bearing, Brushless, Self-excited
Rated output prime power 2200KVA
Rated speed 1500 rpm
Rated frequency 50Hz
Number of phase 3
Rated voltage 400V (Available with custom requirements)
Power factor 0.8
Voltage regulation NL-FL ≤±1%
Insulation grade H
Protection grade IP23

Dimension & Weight

Open Type Overall Size:L×W×H (mm) 7000×2300×2800 Soundproof Type Overall Size:L×W×H (mm) 40FT Container
Open Type Weight (kg) 9800 Soundproof Type Weight (kg) 13500
