15 kw 3 cylinders Deutz diesel generator set

15 kw rated power 3 cylinders Deutz F3L912 diesel generator set, compact design with small size, good quality at affordable price, suitable for residential backup usage.

SKU: 15GF-D Category:
General Details

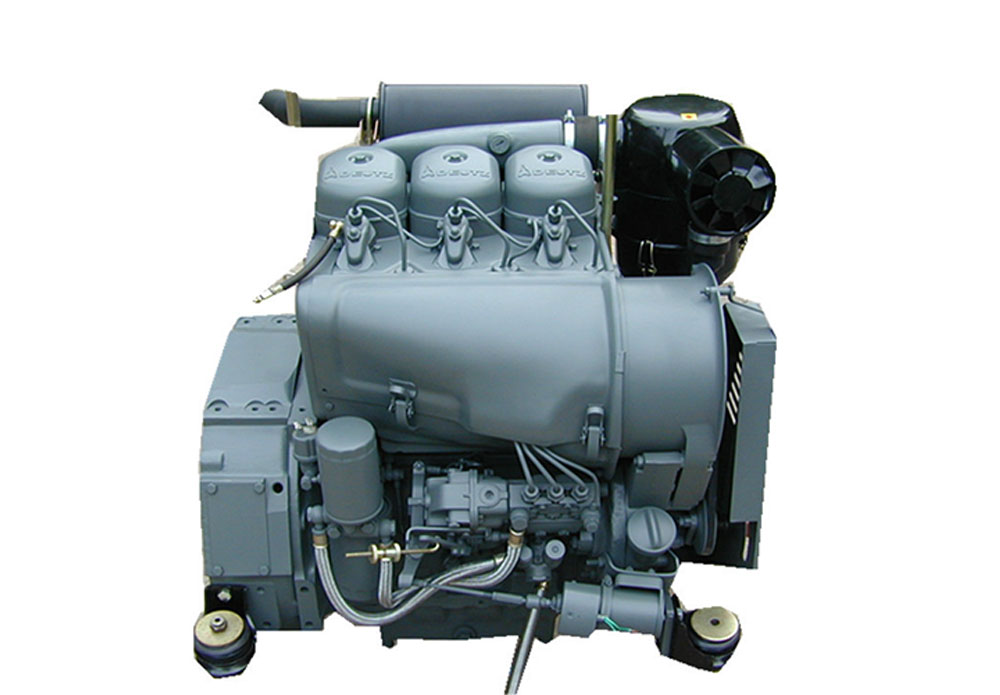

15 kw rated power 3 cylinders Deutz F3L912 diesel generator set
General Information of 15 kw 3 cylinders Deutz diesel generator set
Genset Model DAL15SA
Engine Model Deutz F3L912D
Alternator Model Stamford PI144D
Rated Power 15 KW
Standby Power 16.5 KW
Rated Speed 1500rpm
Rated Voltage 220/380V, 230/400V, 240/415V, 254/440V
Frequency 50 HZ
Power Factor 0.8
Winding Connection 3-phase, 4-wire
Dimension 1500*1000*1100
Net Weight 635 KG
Engine Specifications of 15 kw 3 cylinders Deutz diesel generator set
Engine Brand Deutz
Engine Model F3L912D
Rated Power 24 KW
Rated Speed 1500rpm
Bore*Stroke 100*120
Engine Type 3 Cylinders, in Line
Displacement 2.828 L
Aspiration Naturally Aspirated
Fuel System Fuel Direct Injection
Cooling Method Air Cooled
Starting Method 12V/24V, Electric Starting
Governor Method Mechanical/Electric Governor
Net Weight 275 KG
Alternator Specifications of 15 kw 3 cylinders Deutz diesel generator set
Alternator Brand Stamford
Alternator Model PI144D
Rated Voltage 220/380V, 230/400V, 240/415V, 254/440V
Frequency 50 HZ
Winding Connection 3-phrase, 4-wire
Power Factor(COS) 0.8
Exciting Method Brushless Self-exciting
Insulation Class Class H
Protection Class IP23
Winding Pitch Two Thirds
Voltage Regulator AVR
Voltage Regulation ≤± 1.0 %
Efficiency 84.6%-85.6%
Waveform Distortion <1.5% (no load)
Maximum Overspeed 2250 Rev/Min
Telephone Interference(THF) <2%
Inquire this product
