1100kw 1375kva Perkins diesel generator set from China manufacturer

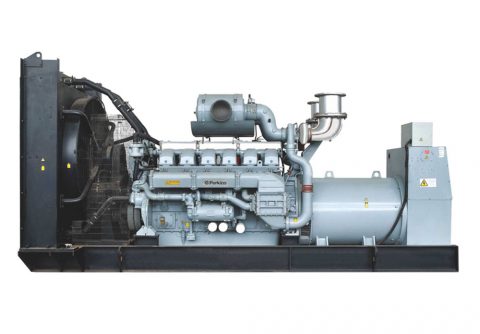

Rated power 1100kw 1375kva Perkins diesel generator set from China manufacturer, powered by original UK Perkins 4012-46TWG3A diesel engine and genuine Stamford PI734B alternator, with Deepsea control panel , open type and silent type available.
General Details
1100kw / 1375 kva rated power Diesel Generator
| Model: | 1100GF-P |
| Prime Power: | 1100KW/1375KVA |
| Standby Power: | 1200KW/1500KVA |
| 50Hz/1500rpm/ThreePhase/ DC 24V electric start |
Diesel Engine Specifications
| Engine Model | 4012-46TWG3A |
| Engine Manufacturer | Perkins UK |
| Cylinder quantity | 12 |
| Cylinder Arrangement | Vee 60° |
| Cycle | 4 |
| Aspiration | Turbo charged |
| Bore x Stroke (mm x mm) | 160×190 |
| Displacement | 45.84 L |
| Compression Ratio | 13:1 |
| Prime power / Speed (KW/RPM) | 1207kw/1500 |
| Standby power/ Speed (KW/RPM) | 1321kw/1500 |
| Governor type | Electronic |
| Piston Speed | 9.5 m/s |
| Typical genset electrical output | 1364 kw |
| Total Lubrication System Capacity (L) | 177 |
| Total Coolant Capacity (L) | 201 |
| Fuel Consumption at 100% load (L/hour) | 283 L |
| Starter motor | 24V |
| Alternator | 24V |
| Minimum cranking speed | 120 rpm |
Alternator Specifications
| Alternator model | PI734B |
| Alternator manufacturer | STAMFORD |
| Exciter type | Single bearing, Brushless, Self-excited |
| Rated output prime power | 1400KVA |
| Rated speed | 1500 rpm |
| Rated frequency | 50Hz |
| Number of phase | 3 |
| Rated voltage | 400V (Available with custom requirements) |
| Power factor | 0.8 |
| Voltage regulation NL-FL | ≤±1% |
| Insulation grade | H |
| Protection grade | IP23 |
Dimension & Weight
| Open Type Size:L×W×H (mm) | 7000×2300×2800 | Silent Type Size:L×W×H (mm) | 40FT Container |
| Open Type Weight (kg) | 7000 | Silent Type Weight (kg) | 11000 |
